What Is LED Video Wall Pixel Pitch and Why It Matters for Your Event
Choosing the right LED video wall for your next event can make or break the visual impact—but one factor matters more than most: LED video wall pixel pitch. This measurement, which refers to the distance between individual pixels, plays a major role in image clarity, resolution, and ideal viewing distance.
In this guide, we’ll explain what LED video wall pixel pitch is, why it’s important, and how to select the perfect option based on your event type, venue size, and audience distance.
📌 Explore our full LED Video Wall Rental Services
What Is Pixel Pitch in LED Walls?
Pixel pitch is the distance (in millimeters) between the center of two adjacent pixels on an LED display. A smaller pixel pitch (like 1.5mm) means the pixels are closer together, resulting in higher resolution — perfect for up-close viewing. Larger pixel pitches (like 3.9mm or 4mm) are ideal for distant viewing, requiring fewer LEDs and offering a more budget-friendly solution.
How Pixel Pitch Affects Visual Quality
Small Pixel Pitch (1.5mm – 2.6mm):
Great for close viewing environments like boardrooms, conferences, and trade shows. These provide crisp detail, especially for content with fine text and graphics.
Medium to Large Pixel Pitch (3.9mm – 4mm+):
Ideal for concerts, sporting events, or outdoor gatherings. These maintain clarity from afar without overspending on unnecessary resolution.
How to Choose the Right Pixel Pitch for Your Event

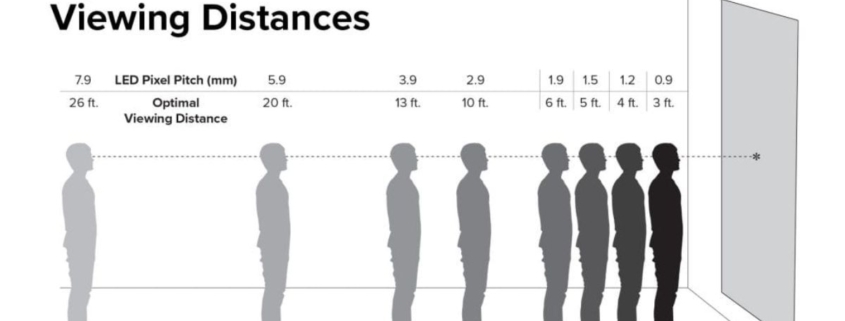

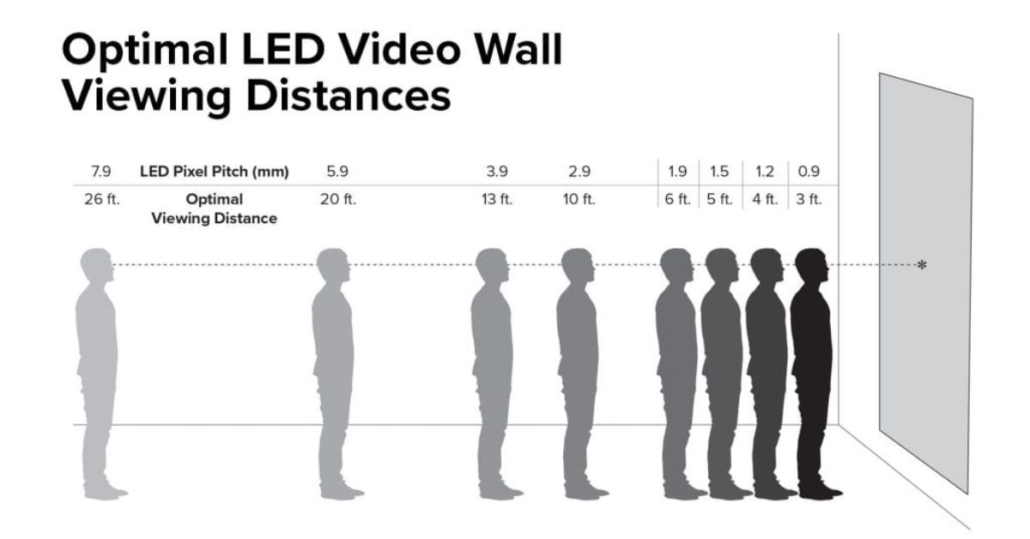

Viewing Distance Matters
- Under 10 feet: Choose 1.5mm or 2.6mm pixel pitch
- 10–20 feet: Opt for 2.6mm to 3.9mm
- Over 20 feet: Use 4mm or higher for best visibility
Event Type Matters Too
- Trade Shows & Conferences: 1.5mm–2.6mm for high detail
- Outdoor Events: 3.9mm+ for durability and cost savings
- Worship Services & Exhibits: 2.6mm–3.9mm depending on venue size
Common Pixel Pitch Options We Offer
- 1.5mm LED Walls – Premium displays for up-close presentations
- 2.6mm LED Video Walls – Versatile choice for most events
- 3.9mm LED Walls – Excellent for mid-range and large gatherings
- 4mm+ Outdoor LED Panels – Best for wide-view and stadium settings
Other Factors to Consider for LED Video Wall Pixel Pitch
- Indoor vs. Outdoor Use: Outdoor screens require higher brightness and weather resistance
- Screen Size & Audience Size: Larger pixel pitch may be better for massive venues
- Budget: The smaller the pixel pitch, the higher the cost due to denser LEDs
💡 Check out our AV Rental Products page for more display and staging options
Pro Tips for Your LED Video Wall Setup
- Test Your Content: Always preview your content on the actual screen
- Match Your Pixel Pitch to Resolution Needs
- Partner with a Trusted AV Provider like AVR Expos for guidance and flawless execution
FAQs About Pixel Pitch and LED Video Walls
What is the best pixel pitch for a trade show booth?
A 2.6mm or 1.5mm pixel pitch is ideal for detailed content in close viewing environments.
Does a lower pixel pitch mean better quality?
Yes, but it also increases the cost. Consider your audience distance before choosing.
Can I use a 1.5mm LED wall outdoors?
Technically yes, but it’s costlier and not always necessary. A 3.9mm or 4mm panel is typically better suited for outdoor use.
Find the Right LED Wall With AVR Expos
AVR Expos offers nationwide LED video wall rentals with pixel pitch options to match any venue, budget, or creative vision. From trade shows and conferences to concerts and live broadcasts, we’ve got the inventory and expertise to deliver a high-impact experience.
🔗 Read our full guide to LED Video Wall Rentals
📍 Looking for city-specific services? Check out our local LED blogs for:
You can learn more about the LED pixel pitch definition from Barco to understand how pixel spacing directly impacts resolution and viewing experience.
